ADO Air Carbon Foldable Bike
Couldn't load pickup availability
Need help choosing the right size?
Ask an expert

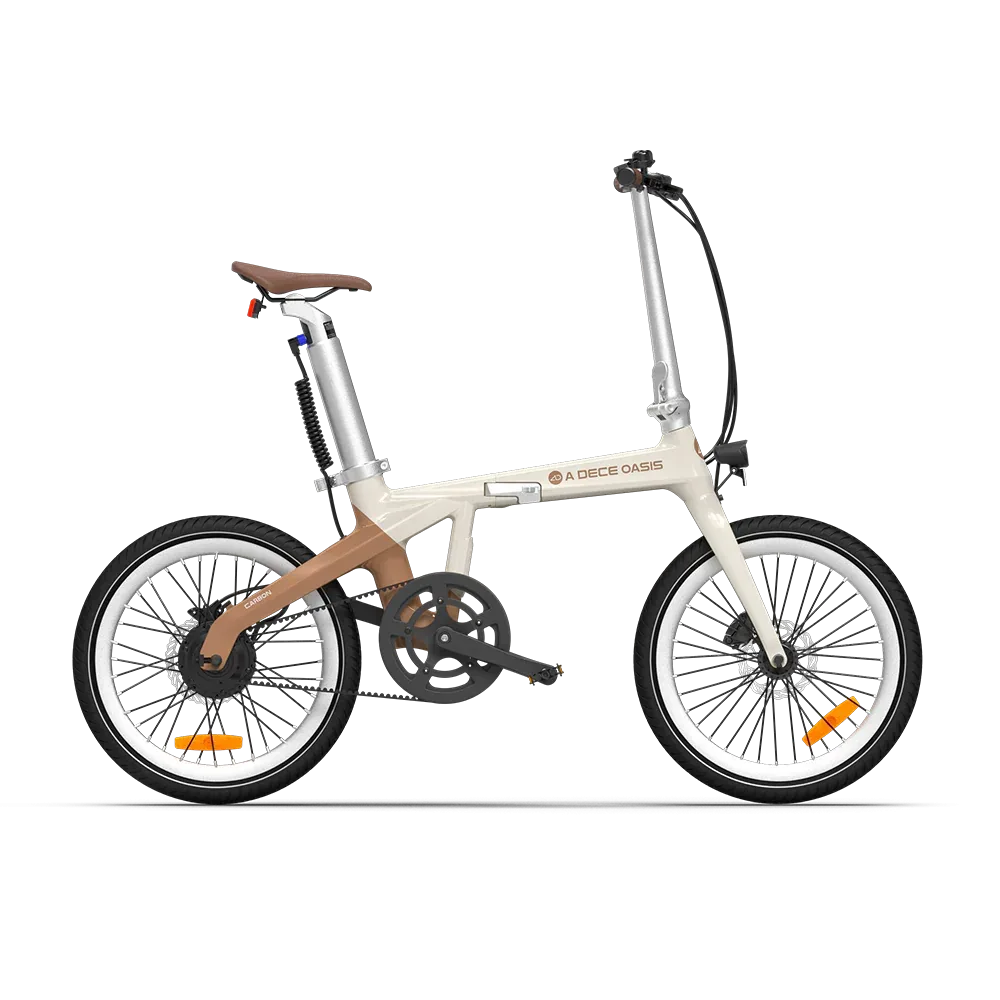

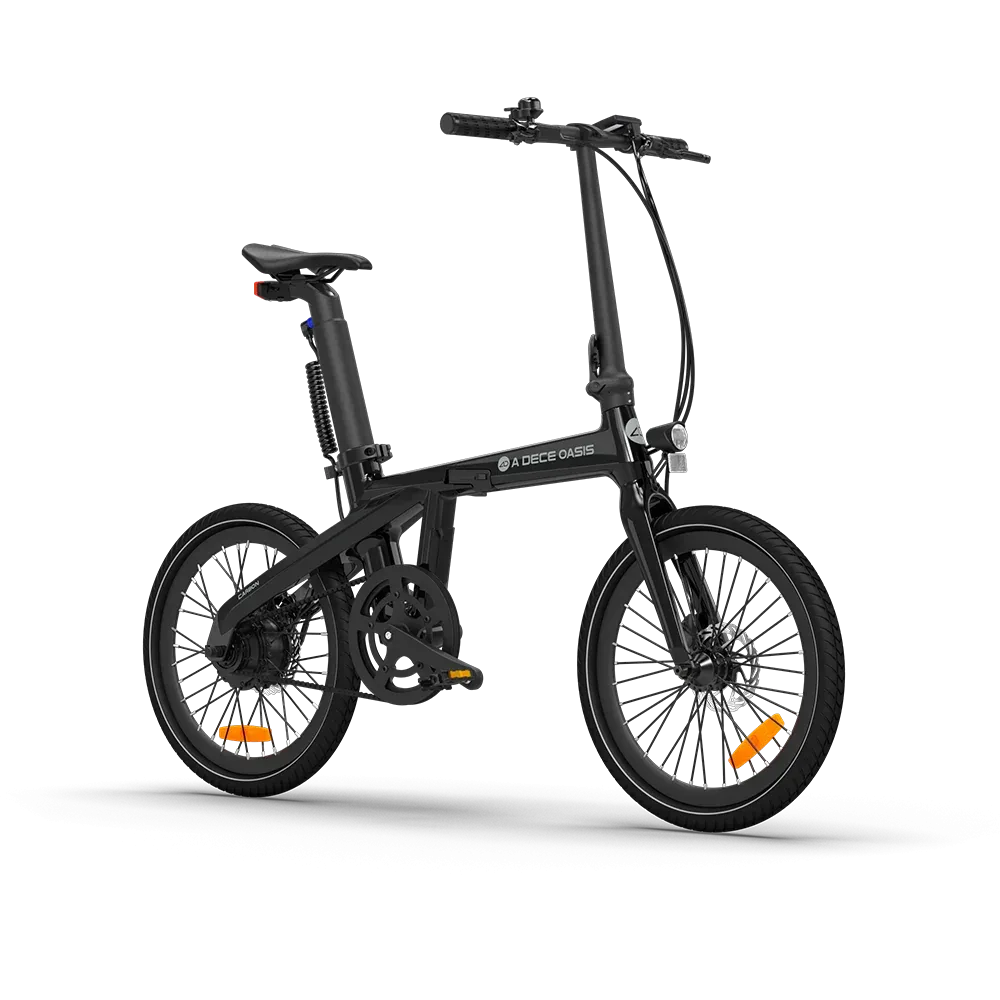

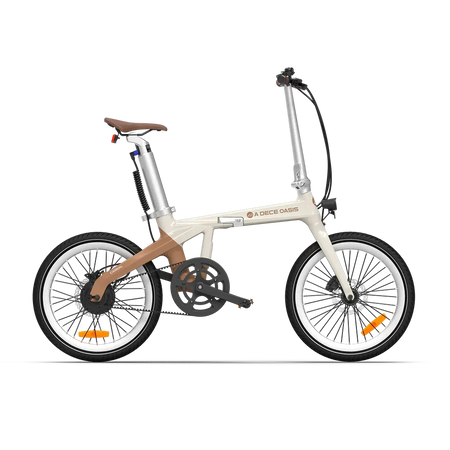

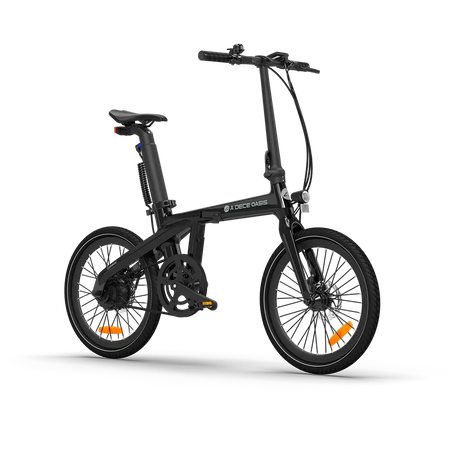

ADO Air Carbon Foldable E-Bike
The Lightest Carbon Folding E-Bike – Built for Urban Freedom
🔧 Powertrain
- Motor Power: 250W
- Motor Type: BAFANG Brushless DC
- Sensor: Torque Sensor
- Torque Output: 35 Nm
- Battery: 36V / 9.6 Ah
- Charging Time: 4–6 Hours
📊 General Specifications
- Max Range: Up to 100 km
- Top Speed: 25 km/h
- Riding Modes: Dual Mode
- Max Climbing Angle: 20°
- Frame Material: Carbon Fiber
- IP Rating: IPX5 (Display: IPX7)
- Recommended Rider Height: 155 cm – 190 cm
- Certifications: SGS CE
📱 Smart Features
- App Integration: ADO Smart App
- GPS: Anti-Theft GPS
- Display: 2.4″ IPS Colorful Display
⚖️ Weight & Capacity
| Category | Value |
|---|---|
| Net Weight | 14+ kg (excl. accessories) |
| Full Weight | 14.5+ kg (incl. accessories) |
| Max Load Capacity | 120 kg |
*Weight tolerance: ±3%–5%
🧩 Components
- Headlight: E-Mark Certified
- Taillight: Electric
- Brakes: Hydraulic Disc
- Chainring: Carbon Belt
- Tires: 20 × 1.75 Inch
- Transmission: Single Speed
📐 Geometry (One Size)
| Measurement | Value |
|---|---|
| Max Seat Height (A) | 1000 mm |
| Min Seat Height (B) | 900 mm |
| Standover Height (C) | 650 mm |
| Seat Tube Length (D) | 335 mm |
| Handlebar Height (E) | 1130 mm |
| Bottom Bracket Height (F) | 175 mm |
| Front to Center (G) | 580 mm |
| Wheelbase (H) | 980 mm |
| Top Tube Length (I) | 500 mm |
| Total Length (J) | 1480 mm |
🌟 Highlights
- Ultra-Light Carbon Frame for effortless portability
- Hydraulic Disc Brakes for smooth, silent stopping
- Smart Connect for real-time feedback and enhanced security
- Integrated Navigation & Ride Tracking via ADO App
- Ideal for City Commuting with sleek design and compact fold
🚚 Shipping Information
We know waiting isn’t your favorite hobby — so we keep it fast.
📦 Standard Shipping:Fast & Express Delivery in 3–7 business days
Free shipping on all orders (because paying extra is just rude)
🤝 Local Delivery:
If you’re close by, we’ll bring it right to your door — same day or next day. Yep, actual humans delivering your order with real enthusiasm.So whether you’re near or far, your package is on its way — fast, free, and maybe even with a smile.
All products are sourced from official importers and covered by manufacturers warranty. If you do need to send items back to us please make sure that you retain proof of postage in the event that it is needed.
